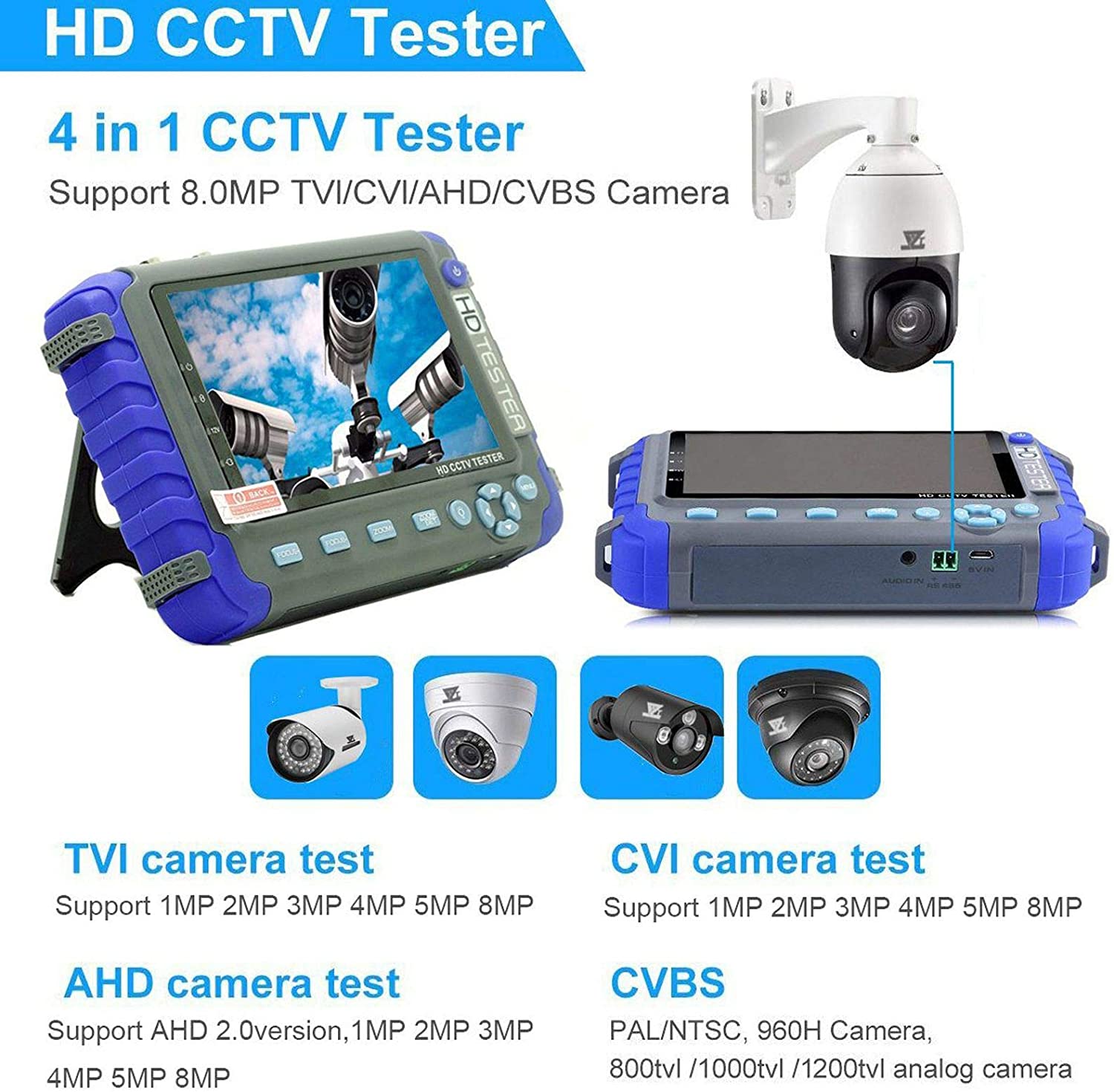

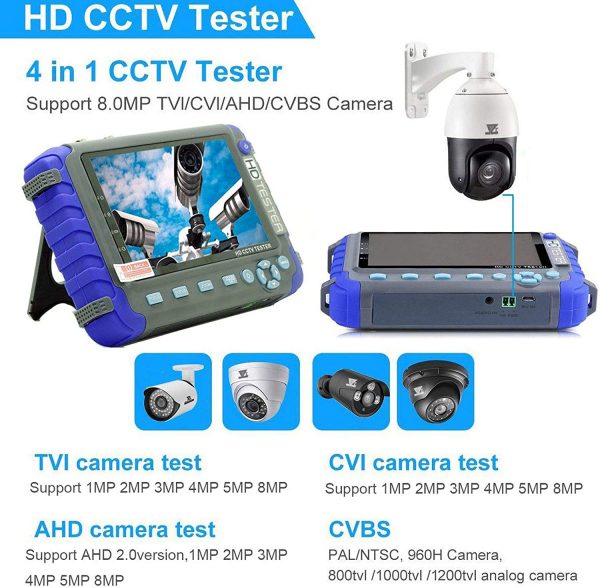

Developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, support TVI,CVI, AHD and Analog Camera. (NOT Support IP Camera).

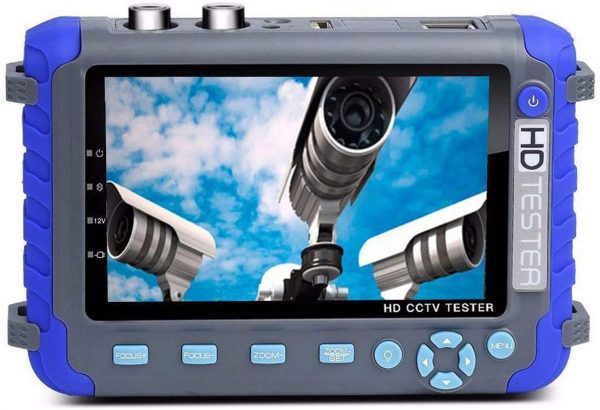

High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size. Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
Rechargeable: Built-in 2x 18650 2600mA battery, after charging 3-4 hour, working time lasts 12 hours
