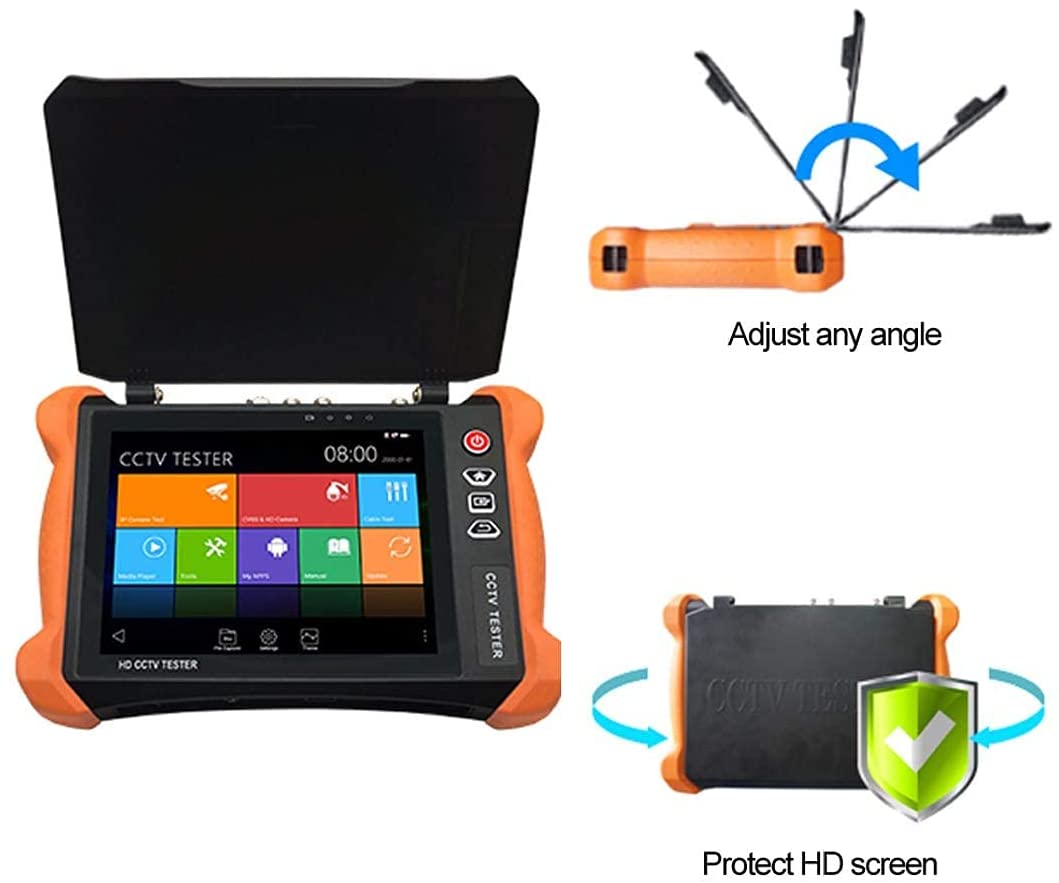

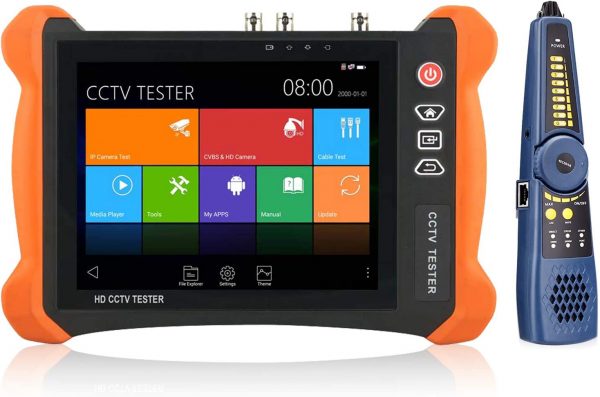

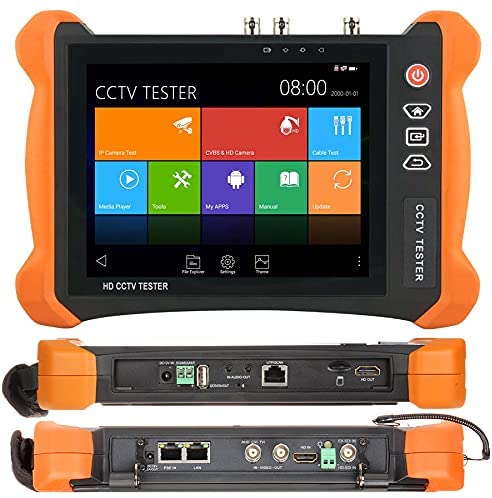

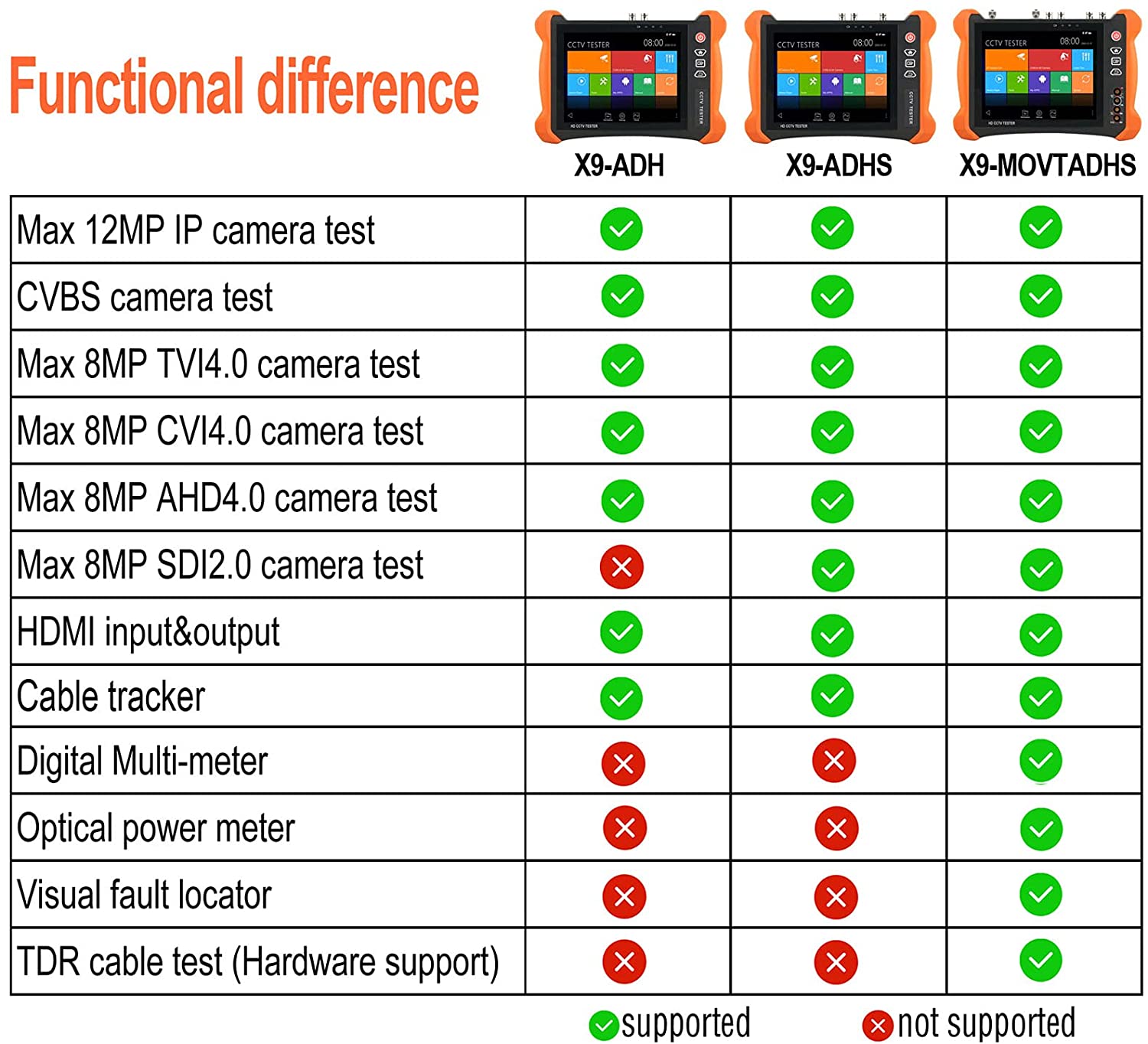

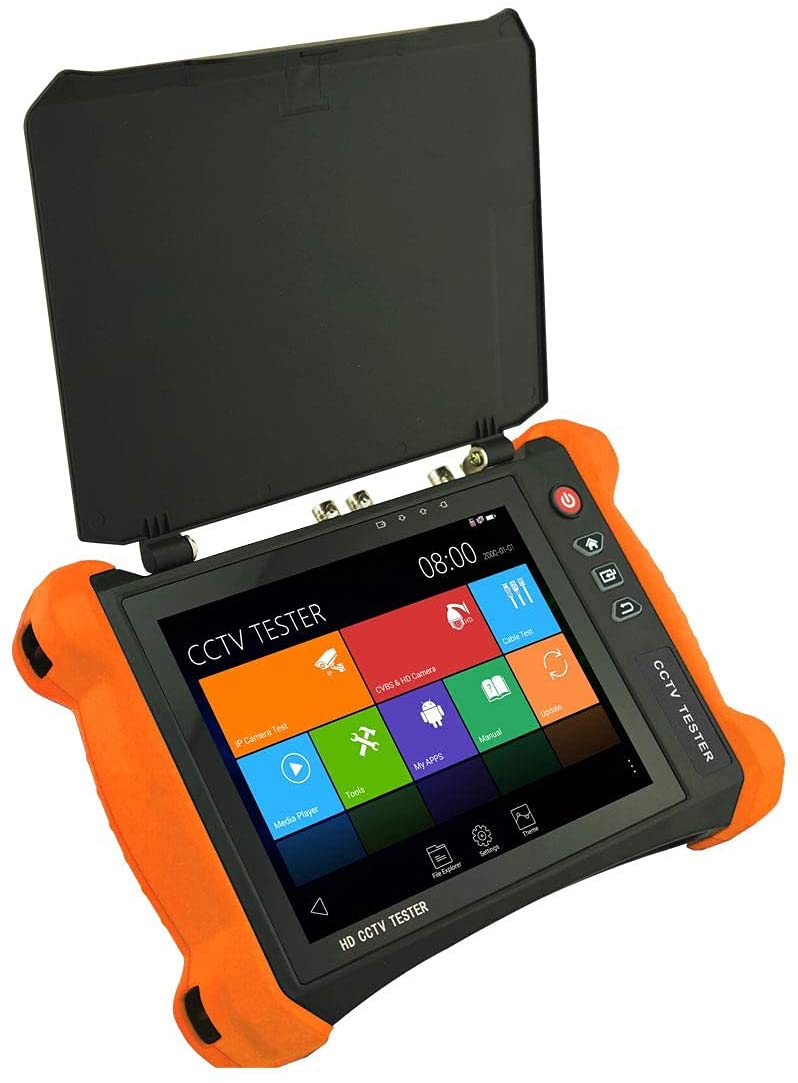

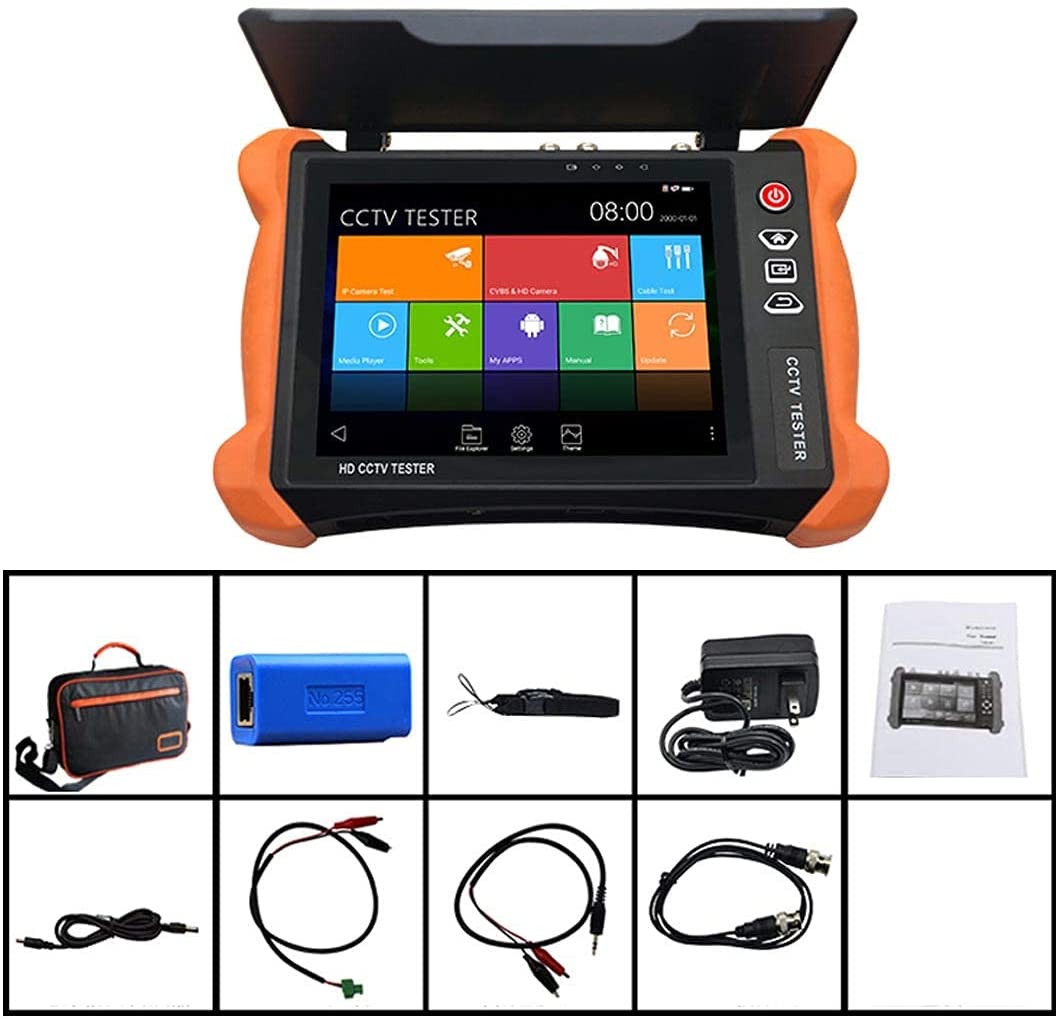

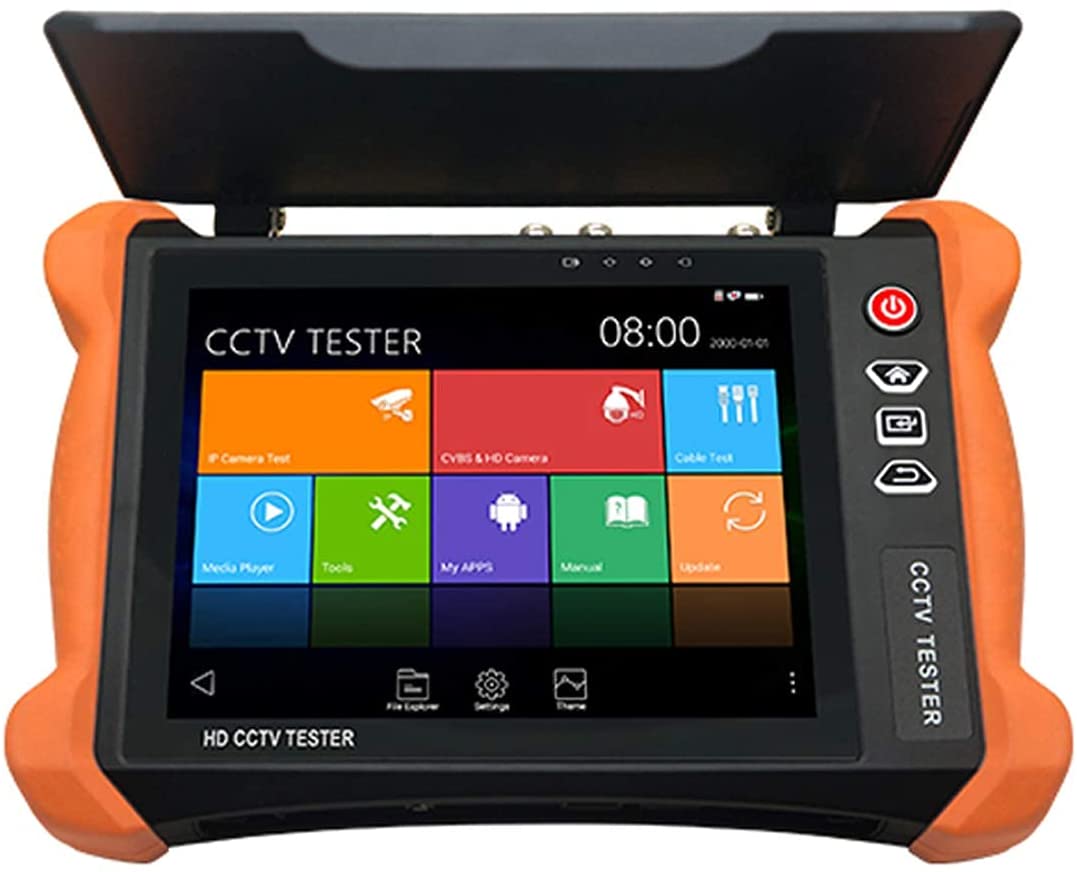

Model: X9-ADHS. 8 inch IPS touch screen, 2048*1536 resolution. Support H.265, H.264, 4K,ONVIF, POE, WiFi, 10/100/1000M Ethernet, RS485, Audio in, HDMI in put & HDMI in put, LED lamp, Built-in Battery.
Coaxial HD camera test. 8MP TVI camera, 8MP CVI camera, 8MP AHD caemre, 8MP SDI camera, CVBS camera test and PTZ control. UTC control and call OSD menu. RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.
12MP 4K/H.265/H.264 IP camera test. Rapid Video Auto view the video, create testing report. IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK. Hik test tool(pressing just one key to activate Hik camera , Image test, modify the user name, PW and IP parameters). DH test tool (DH camera test, modify the username, PW and IP parameters). 10/100/1000M Ethernet.Built in WiFi, Speed 150MB, create WIFI hotspot.

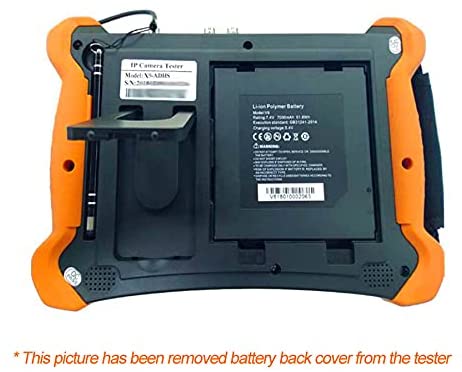

Power: Built-in 7.4V Lithium polymer battery , 7000mAh, after charging 6 hours, normal working time 16 hours. Input:DC12V 2A; Output:DC12V 2A, DC5V 2A, PoE power output 48V, max power 25.5W.
1 year free warranty. Language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc. Dimension/Weight 10.4 x 7.2 x 1.7 inch / 1kg(2.2lbs). Free Express shipping(Does not include remote areas).
